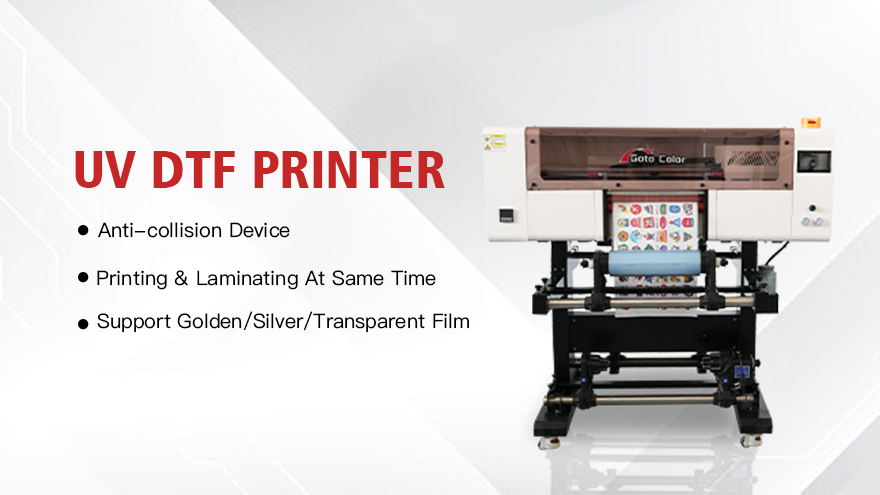

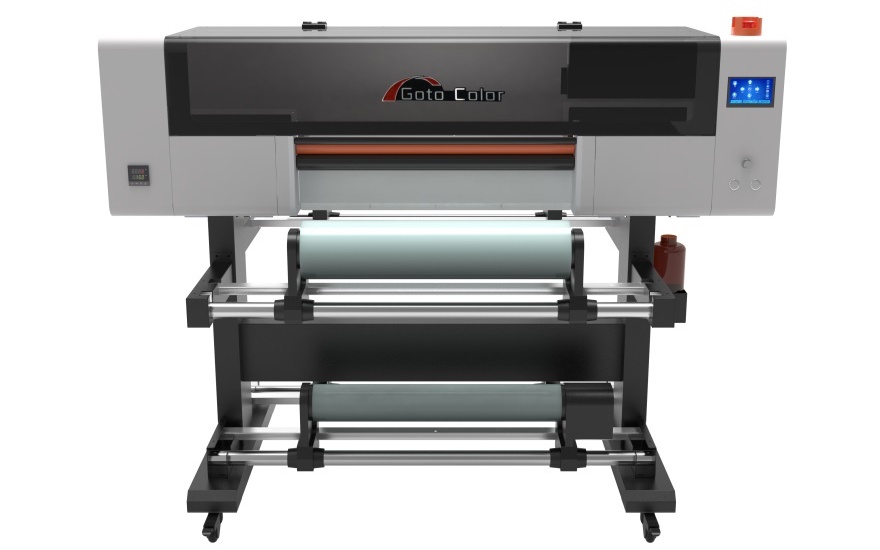

A UV DTF printer is an advanced printing system designed to print high-quality patterns directly onto PET film. It allows a single operator to manage multiple machines efficiently, making it ideal for on-demand and small-batch production without any minimum order requirements. With fast printing speed, low operating cost, and bright, vivid colors, it eliminates the complexity of traditional printing processes. Once printed, the design can be easily transferred onto any hard surface — such as cups, helmets, gift boxes, mugs, wine bottles, or phone cases — delivering a striking and professional finish.
| Specification | Details |
|---|---|
| Brand | Goto Color |
| Model | U600 UV DTF Printer |
| Print Head | 3 pcs Epson I1600 / I3200 U1 heads |
| Color | CMYK + White + Varnish |
| Print Width | 600 mm |
| Print Speed | 1.8 – 4.5 m²/h |
| Print Software | PhotoPrint |
| Working Voltage | AC 220V / 110V, 50Hz / 60Hz |
The UV DTF printer represents a new generation of digital printing technology that combines the precision of UV printing with the flexibility of transfer application. Instead of printing directly onto the substrate, the printer applies UV-curable inks onto a specialized film, which is then laminated with adhesive and transferred to various materials. This process delivers exceptional detail, strong color vibrancy, and a smooth finish without the need for pretreatment or heat pressing. The cured ink layer is resistant to scratches, water, and UV exposure, ensuring long-lasting results.

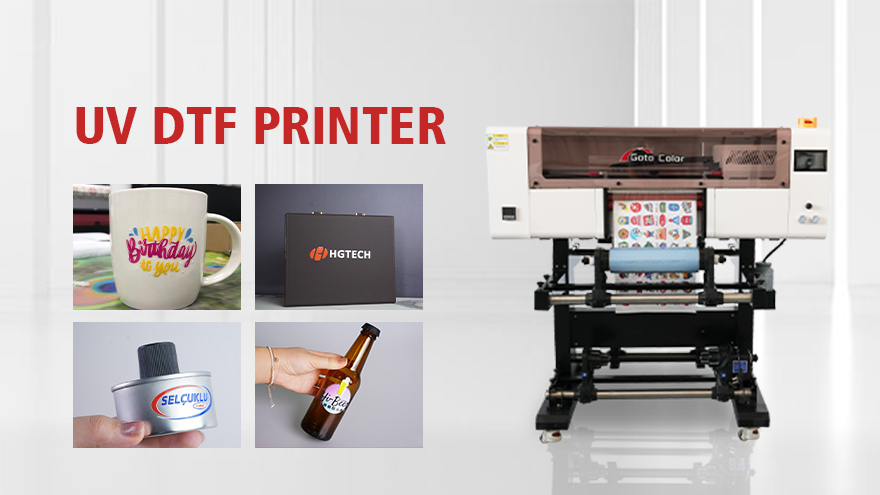

With its ability to decorate irregular, curved, or textured surfaces, the UV DTF printer is ideal for personalized and small-batch industrial production. It can be applied to products such as bottles, cups, phone cases, packaging boxes, and promotional items. Combining easy operation, high efficiency, and low waste, this technology provides a practical and profitable solution for businesses aiming to expand their printing capabilities and meet the growing demand for customized products.
What is the printing process of UV DTF Printers?
The printing process of a UV DTF printer involves several key steps:
- Printing on PET Film: The printer first prints the design onto a special PET transfer film using UV-curable inks (CMYK + White + Varnish). The UV LED lamps instantly cure the ink, creating a durable and textured surface.
- Lamination: After printing, a clear adhesive film is laminated onto the printed PET film. This layer enables easy transfer to the final object.
- Transfer: The laminated film is cut to size and applied to the target surface. Pressure is used to ensure adhesion, with no heat or pretreatment required.
- Peeling: The PET film is peeled off, leaving the printed design firmly attached to the surface with a glossy, scratch-resistant finish.
This process allows for vivid, durable, and detailed decoration on a wide range of materials — including glass, metal, plastic, ceramics, and wood.
