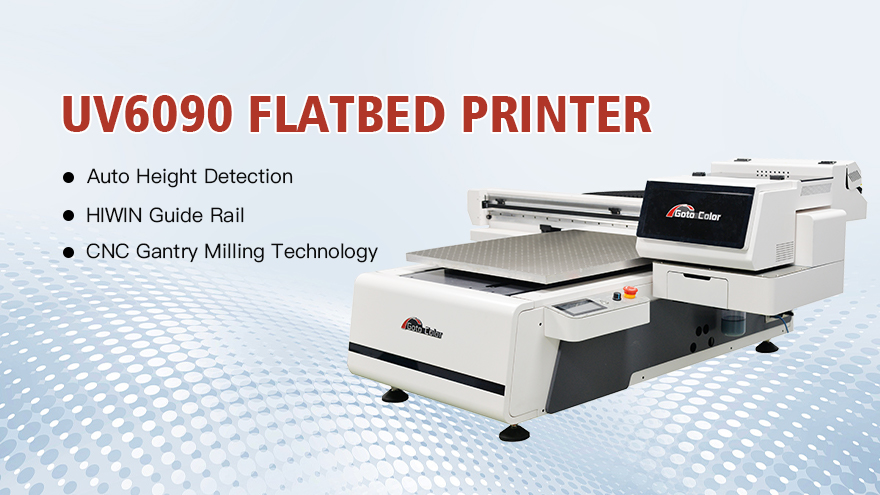

This 6090 uv flatbed printer redefines modern signage and industrial printing. They support printing on a diverse selection of materials, including vinyl, PET, backlit fabric, ceiling film, wallpaper, and advertising banners. These printers enable advanced print effects such as day-and-night printing, back-to-back designs, dual creative outputs, and embossed 3D textures, opening up new creative possibilities for businesses.
| Specification | Details |
|---|---|
| Brand | Goto Color |
| Model | GT 6090 UV Printer |
| Print Head | 3 × Epson DX10 / F1080 / i1600U1 / I3200 |
| Printing Speed | 6 m²/h (8 Pass), 8 m²/h (6 Pass) |
| Ink | CMYK (LcLm) + White + Varnish |
| UV Cure | 3 pcs LED Lamp |
| RIP Software | Photoprint |
| Maximum Media Thickness | 15 cm |
| Supported Media Types | Plastic, Metal, Glass, Leather, Wood, Paper, Ceramic, etc. |
| Operating Temperature | 15–30 °C |
| Machine Weight | 240 kg |
| Packing Size | 167 × 144 × 88 cm |
What is the printing process of UV Flatbed Printer?
The printing process of a UV flatbed printer is straightforward and efficient:
- Material Placement: The printing substrate — such as glass, wood, metal, acrylic, or plastic — is placed on the flatbed platform. The printer adjusts the height automatically to match the material’s thickness.
- Image Printing: The print head sprays UV-curable inks (CMYK + White + Varnish) directly onto the surface according to the digital image file.
- UV Curing: As the ink is applied, built-in UV LED lamps instantly cure and harden it, forming a solid, durable layer of color and texture.
- Finishing: Once printing is complete, the material is ready for use immediately — no drying or coating required. Optional varnish layers can add gloss, matte, or embossed effects for added visual impact.
This process allows the UV flatbed printer to produce vibrant, scratch-resistant, and weatherproof prints on almost any rigid material, making it ideal for signage, décor, and industrial applications.

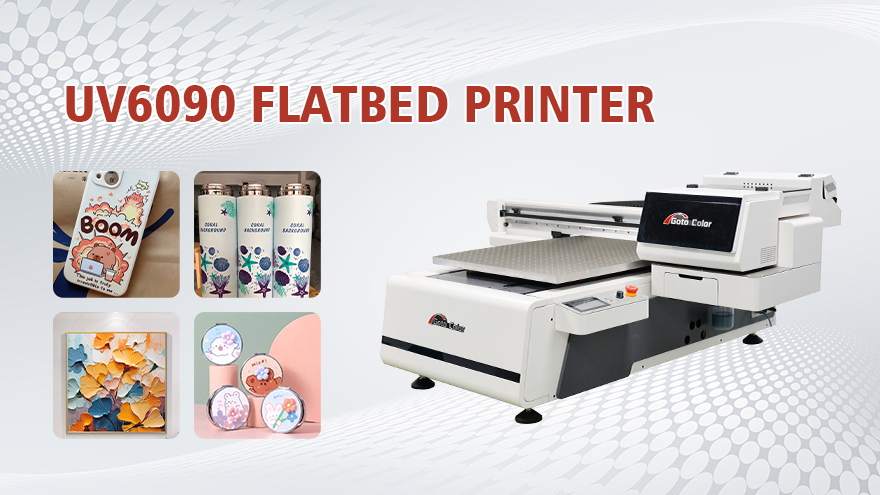

What Can UV Printer 6090 Print
Advantages of the 6090 UV Flatbed Printer
- Wide Material Compatibility: Prints directly on acrylic, wood, glass, metal, leather, PVC, and more.
- High Precision & Quality: Delivers sharp images with rich colors and optional 3D, gloss, or matte effects.
- Instant UV Curing: Uses LED UV lamps for instant drying, no waiting time or post-processing needed.
- Durability: Prints are waterproof, scratch-resistant, and UV-resistant for long-lasting results.
- Flexible Production: Supports both small-batch customization and continuous industrial printing.
- Easy Operation: User-friendly interface and stable performance with minimal maintenance.
- Cost Efficiency: Low ink consumption and high output speed reduce overall production costs.
- Environmental Safety: UV inks are eco-friendly with low VOC emissions and no odor.
